Parent Layer: Existing Facilities

Name: Electric Transmission Lines

Display Field: ID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

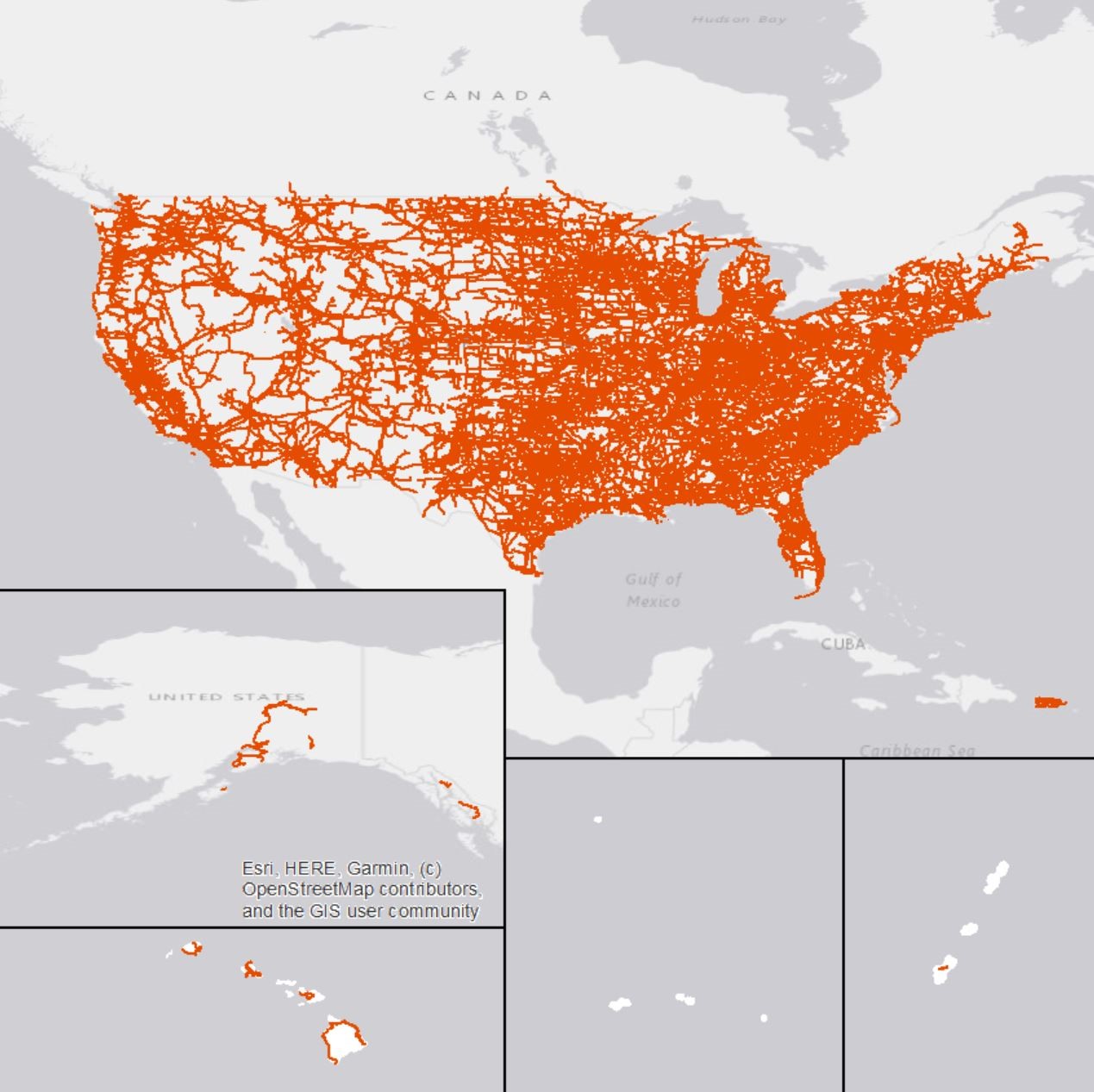

Description: <DIV STYLE="text-align:Left;"><DIV><P><SPAN>This feature class/shapefile represents electric power transmission lines. Transmission Lines are the system of structures, wires, insulators and associated hardware that carry electric energy from one point to another in an electric power system. Lines are operated at relatively high voltages varying from 69 kV up to 765 kV, and are capable of transmitting large quantities of electricity over long distances. Underground transmission lines are included where sources were available. The following updates have been made since the previous release: 3,319 features added.</SPAN></P></DIV></DIV>

Service Item Id: 30b4e55c3de5413fbc6773467f65a33e

Copyright Text: Oak Ridge National Laboratory (ORNL), Los Alamos National Laboratory (LANL), Idaho National Laboratory (INL), National Geospatial-Intelligence Agency (NGA) Homeland Security Infrastructure Program (HSIP) Team

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 357915.46690000035
YMin: 526051.7675000001
XMax: 391921.75379999983
YMax: 563746.0052999997
Spatial Reference: 3071  (3071)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [255, 255, 0, 255]
Width: 5
Label: N/A
Description: N/A
Transparency: 50
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• ID ( type: esriFieldTypeString, alias: ID, length: 10 )
• TYPE ( type: esriFieldTypeString, alias: TYPE, length: 60 )
• STATUS ( type: esriFieldTypeString, alias: STATUS, length: 60 )
• NAICS_CODE ( type: esriFieldTypeString, alias: NAICS_CODE, length: 6 )
• NAICS_DESC ( type: esriFieldTypeString, alias: NAICS_DESC, length: 50 )
• SOURCE ( type: esriFieldTypeString, alias: SOURCE, length: 250 )
• SOURCEDATE ( type: esriFieldTypeDate, alias: SOURCEDATE, length: 8 )
• VAL_METHOD ( type: esriFieldTypeString, alias: VAL_METHOD, length: 100 )
• VAL_DATE ( type: esriFieldTypeDate, alias: VAL_DATE, length: 8 )
• OWNER ( type: esriFieldTypeString, alias: OWNER, length: 80 )
• VOLTAGE ( type: esriFieldTypeSingle, alias: VOLTAGE )
• VOLT_CLASS ( type: esriFieldTypeString, alias: VOLT_CLASS, length: 50 )
• INFERRED ( type: esriFieldTypeString, alias: INFERRED, length: 13 )
• SUB_1 ( type: esriFieldTypeString, alias: SUB_1, length: 80 )
• SUB_2 ( type: esriFieldTypeString, alias: SUB_2, length: 80 )
• Source2 ( type: esriFieldTypeString, alias: Source2, length: 254 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
